Técnicas de IA para Biologia

4 - Convolutional Networks

André Lamúrias

Convolutional Networks

Summary

What is convolution
Convolution layers and neural networks (CNNs)
Pooling
Classification with convolutional networks
CNN tutorial: Fashion MNIST classification with CNN and Keras

Convolutional Networks

Convolution

Definition:

Integral of the product of two functions, one of which was shifted and inverted
Used in many applications, such as probabilities or linear time-invariant systems

Convolution

$$(f*g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t-\tau) d\tau = \int_{-\infty}^{\infty} f(t-\tau) g(\tau) d\tau$$

Intuition: Suppose a LTIS with this response:

Convolution

$$(f*g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t-\tau) d\tau = \int_{-\infty}^{\infty} f(t-\tau) g(\tau) d\tau$$

Subject to this impulse

How do we compute the output?

Convolution

$$(f*g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t-\tau) d\tau = \int_{-\infty}^{\infty} f(t-\tau) g(\tau) d\tau$$

First we take the symmetric of the response:

How do we compute the response?

Convolution

$$(f*g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t-\tau) d\tau = \int_{-\infty}^{\infty} f(t-\tau) g(\tau) d\tau$$

Now we integrate product at different time shifts

Convolution

For finding patterns

Suppose we have this signal and want to detect the spike pattern

Convolution

For finding patterns

We create this "detector" function (inverted)

Convolution

$$(f*g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t-\tau) d\tau = \int_{-\infty}^{\infty} f(t-\tau) g(\tau) d\tau$$

We detect the pattern integrating at different time shifts

Convolution

Motivation:

Use a kernel (w) to modify the input (x) and create a new function (s) using weighted values "around" the input

E.g. a weighted average of most recent values in a time series, local features of an image, etc,

In practice, for CNN:

The input is a finite, discrete set of values (assumed 0 everywhere else)
The kernel is a finite set of parameters that will be learned
The output will be tensor, typically of the same size and shape as the input

Convolution

Two-dimensional convolution

We often use convolution in more than one dimension (e.g. for images)
Since convolution is commutative, we often use:

I.e. we index the kernel and the image around (i,j)

Convolutional networks

CNN

Motivation for convolutional networks

Sparse interactions (sparse connectivity or sparse weights)

Since the kernel is smaller than the input, we need fewer parameters

Shared parameters

Connections are sparse but the same parameters are used over all inputs

Equivariance

Convolutions are equivariant to some transformations
I.e. applying the transformation (e.g. translation) to the input is the same as applying it to the convolution

CNN

Motivation: sparse interactions

Convolutional networks have fewer connections than MLP

Goodfellow, Bengio, Courville, Deep Learning 2016

CNN

Motivation: sparse interactions

Convolutional networks have fewer connections than MLP
But deeper neurons can still have a large receptive field in the input

Goodfellow, Bengio, Courville, Deep Learning 2016

CNN

Motivation: parameter sharing

The same parameter is used for many inputs

E.g. edge detection by subtracting pixel on the left

Goodfellow, Bengio, Courville, Deep Learning 2016

CNN

Motivation: equivariance

Moving the input image is equivalent to moving the output of the convolution filter (the feature map)

Goodfellow, Bengio, Courville, Deep Learning 2016

CNN

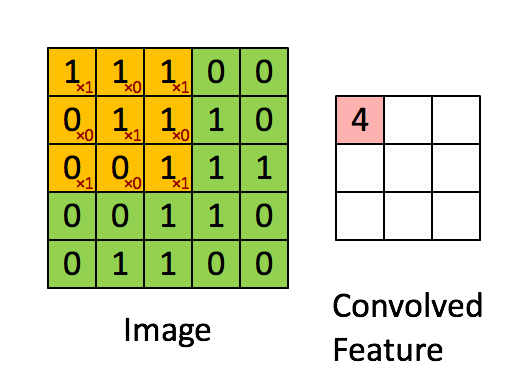

Receptive field and multiple filters

Visual cortex neurons respond to a small receptive field in retina

Neurons in convolution layers have this property

Multiple convolution filters are generally applied

Images: Aphex34, CC-SA; UFLDL tutorial, Stanford (Ng et. al.)

CNN

Receptive field and multiple filters

Multiple convolution filters are generally applied

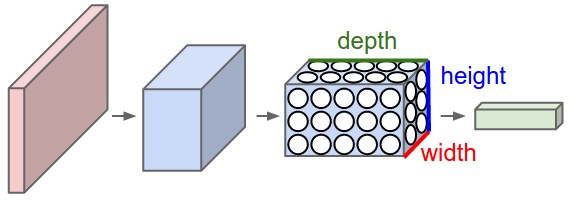

We generally represent convolution layers as 3D volumes of neurons (in image processing), stacking the different convolution filters

Image: CS231n Stanford (Fei-Fei Li et. al.)

CNN

Nonlinear tranformation

A convolution is a linear transformation, so in CNN the convolution filter generally feeds into a nonlinear response (usually ReLU)

CNN

Hyperparameters of a convolution layer

Depth: the number of filters being learned
Stride: How the receptive field "jumps"
Padding: to prevent output from shrinking

Image: Machine learning guru, http://machinelearninguru.com

CNN

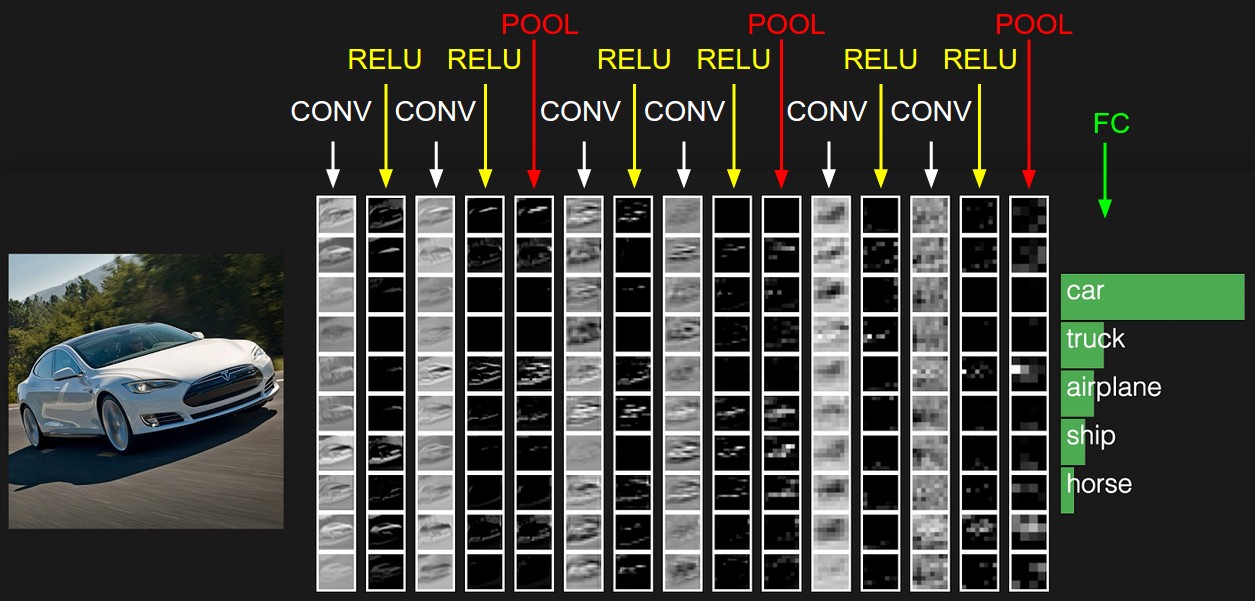

Example: convolution network

Stanford (CS231, Fei-Fei Li et. al.)

http://cs231n.github.io/convolutional-networks/

Convolutional networks

Pooling

Typical architecture of a convolutional layer

Convolutions: several convolutions in parallel, generating a set of linear activations
Nonlinear activation: applied to each linear output (typically ReLU)

(detector stage)

Pooling: aggregates the outputs in a single output for each region

Pooling

Pooling: aggregating outputs

Example: max pooling

Image: Aphex34, CC-SA

Pooling

Pooling: aggregating outputs

Typical pooling functions:

Max pooling, average pooling, L$^2$ norm pooling: $\sqrt{ \sum x_i^2}$

Pooling makes model nearly invariant to small shifts in input

Pooling Stride

We may want to regulate the overlap of pooling regions
If the stride is equal to the size of the regions, then there is no overlap
Stride also reduces the dimension

(pooling of stride 1, with padding, preserves dimension)

Classificaton with CNN

For classification, conv layers combined with MLP

Fully connected layers at the end to predict class for example
Forces fixed-sized input and output not spacial

Alex Krizhevsky, Ilya Sutskever, Geoffrey E. Hinton, 2012

Convolutional networks

Tutorial: Keras Sequential API

Keras Sequential

Building a model with Keras

Start by importing classes:


from tensorflow.keras.optimizers import SGD
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import BatchNormalization,Conv2D,MaxPooling2D,
from tensorflow.keras.layers import Activation, Flatten, Dropout, Dense

Keras Sequential

Building a model with Keras

Create a Sequential model and add layers


model = Sequential()
model.add(Conv2D(32, (3, 3), padding="same", input_shape=(28,28,1)))
model.add(Activation("relu"))
...
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Conv2D(64, (3, 3), padding="same"))
...
model.add(Flatten())
model.add(Dense(512))
model.add(Activation("relu"))
model.add(BatchNormalization())
model.add(Dropout(0.5))
model.add(Dense(10))
model.add(Activation("softmax"))

Keras Sequential

Side note:

(Current consensus, but some opinions may vary)
Use batch normalization after activation so that input of following layer is standardized
Use dropout after all batch normalizations

Otherwise you may need to compensate the rescaling of dropout when shifting to prediction mode

Dropout may have some benefits in convolution layers but in that case it is not the same as dropout in dense layers

Keras Sequential

Compiling the model


opt = SGD(lr=INIT_LR, momentum=0.9, decay=INIT_LR / NUM_EPOCHS)
model = create_model()
model.compile(loss="categorical_crossentropy", optimizer=opt,
	metrics=["accuracy"])

Now we can train the model and save the weights.


history = model.fit(trainX, trainY, validation_data=(testX, testY),
                  batch_size=BS, epochs=NUM_EPOCHS)
model.save_weights('fashion_model.weights.h5')

The saved weights can be loaded with

model.load_weights(file_name)

Keras Sequential

Monitoring

The fit method returns a history object (parameters, model, etc)


history = model.fit(trainX, trainY, validation_data=(testX, testY),
                    batch_size=BS, epochs=NUM_EPOCHS)



In: history.history
Out:
 {'acc': [0.7736167, ...],
  'loss': [0.6834171069622039, ...],
  'val_acc': [0.1974, ...],
  'val_loss': [2.1077217151641845, ...]}

Convolutional networks

Tutorial: Regression and CNN

Tutorial

Regression with the Auto MPG Data Set

Predict the fuel consumption of cars

Auto MPG Data Set, available at the UCI repository

Some pointers:

Shuffle the data before splitting into training and validation sets
Target: first column, MPG (miles per gallon)
Standardize features and target value

Standardizing target centers the output and minimizes numerical problems

Only 392 examples. Use 300 for training and 92 for validation.
Linear output for the last neuron (only one neuron)
Mean squared error loss function for training
Try different activations and learning parameters (rate, momentum)

Tutorial

Regression with the Auto MPG Data Set

Load, standardize, use 300 for train and rest for validation:


data = np.loadtxt('AutoMPG.tsv',skiprows=1)
np.random.shuffle(data)
means = np.mean(data,axis=0)
stds = np.std(data,axis=0)
data = (data-means)/stds

valid_Y = data[300:,0]
valid_X = data[300:,1:]

Y = data[:300,0]
X = data[:300,1:]

Tutorial

Fashion MNIST

https://github.com/zalandoresearch/fashion-mnist

Grayscale images, 28x28, 10 classes of clothing

Tutorial

Import the dataset and set up the data


from tensorflow import keras
((trainX, trainY), (testX, testY)) = keras.datasets.fashion_mnist.load_data()
trainX = trainX.reshape((trainX.shape[0], 28, 28, 1))
testX = testX.reshape((testX.shape[0], 28, 28, 1))
trainX = trainX.astype("float32") / 255.0
testX = testX.astype("float32") / 255.0
# one-hot encode the training and testing labels
trainY = keras.utils.to_categorical(trainY, 10)
testY = keras.utils.to_categorical(testY, 10)

One-hot encoding for encoding multi-class.


[[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
...

Softmax will output vectors with sum of 1 and with probabilities of belonging to each class

Tutorial

Model for this exercise:

First stack:

Two convolution layers with $3\times3$ kernel, padding "same", 32 filters, ReLU activation and batch normalization
Max pooling of size $2\times2$ and same stride
Optional: you can try adding dropout layer with 25% dropout probability (but results seem to be worse)

Second stack: Identical to first but with 64 filters
Dense layer of 512 neurons with ReLU activation, batch normalization and dropout of 50%
Softmax layer with 10 neurons.
Use the SGD optimizer and about 25 epochs, save after fitting
Optional: Experiment changing the model and optimizers
